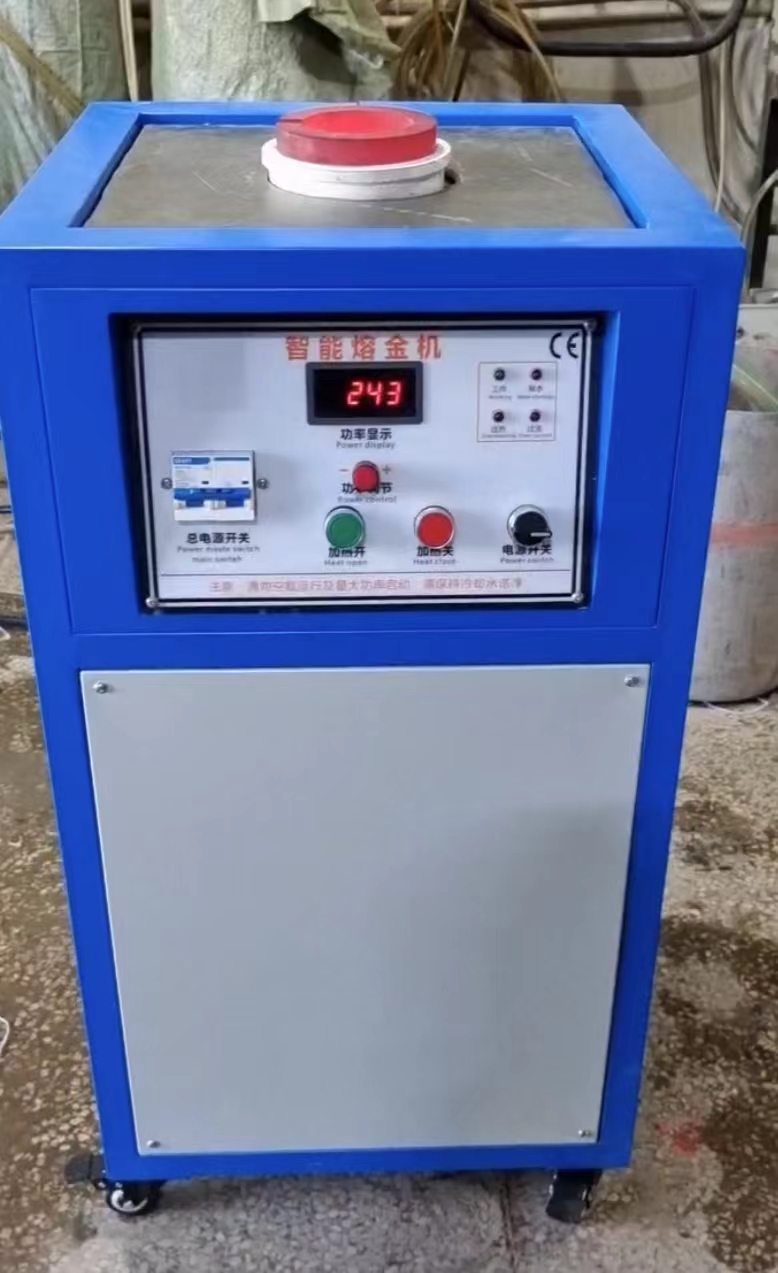

產品特點：體積小、重量輕、熔煉速度快、操作簡單、安裝移動方便。連接電源，感應圈和進出水管路即可使用。耗電省，平均每熔 1kg黃金耗電小于0.3度，具有過流、過壓、欠壓、缺水、超溫等保護功能，可用于黃金、白銀粗煉、潑珠等用途。
Product Characteristics：Small in size, light in weight, speedy in smelting , simple in operation, easy in erection and movement; ready for operation when power supply, induction coil and inlet and outlet pipelines get connected; less power consumption with less than 0.3 kw/h for average per smelting of 1 kg gold; with over-current,over-voltage, under-voltage, water deficiency, over-temperature and other protection functions; applied for roughing of gold and smelting of white silver and other uses.
| 型號規格 Model | CGL-10 | CGL-20 | CGL-30 | CGL-40 | |
|---|---|---|---|---|---|
| 輸入電壓 Input voltage | V | 380 | 380 | 380 | 380 |
| 輸入電流 Output voltage | A | 12-15 | 12-15 | 30-45 | 30-45 |
| 熔金重量 Gold smelting weight | kg | 0.5-4 | 0.01-5 | 4-12 | 4-15 |
| 輸出功率 Output power | kw | 8-10 | 8-10 | 20-30 | 20-30 |
| 振蕩頻率 Vibrating frequency | khz | 50-90 | 50-90 | 35-50 | 35-50 |
| 冷卻水壓 Cooling water pressure | mpa | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 |
| 溶煉時間 Smelting time | min | 2-6 | 2-6 | 3-10 | 3-10 |
| 輸出振蕩電流 Vibrating current for output | A | 180-600 | 180-600 | 300-1000 | 300-1000 |
| 外形尺寸 Outside dimension | mm | 610×650×1250 不包含感應圈及操作臺 Not including induction coil and operation platform | 550×800×1050 不包含感應圈及操作臺 Not including induction coil and operation platform | ||
注：配電箱客戶自備 Note: Switch box to be provided by customer
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
