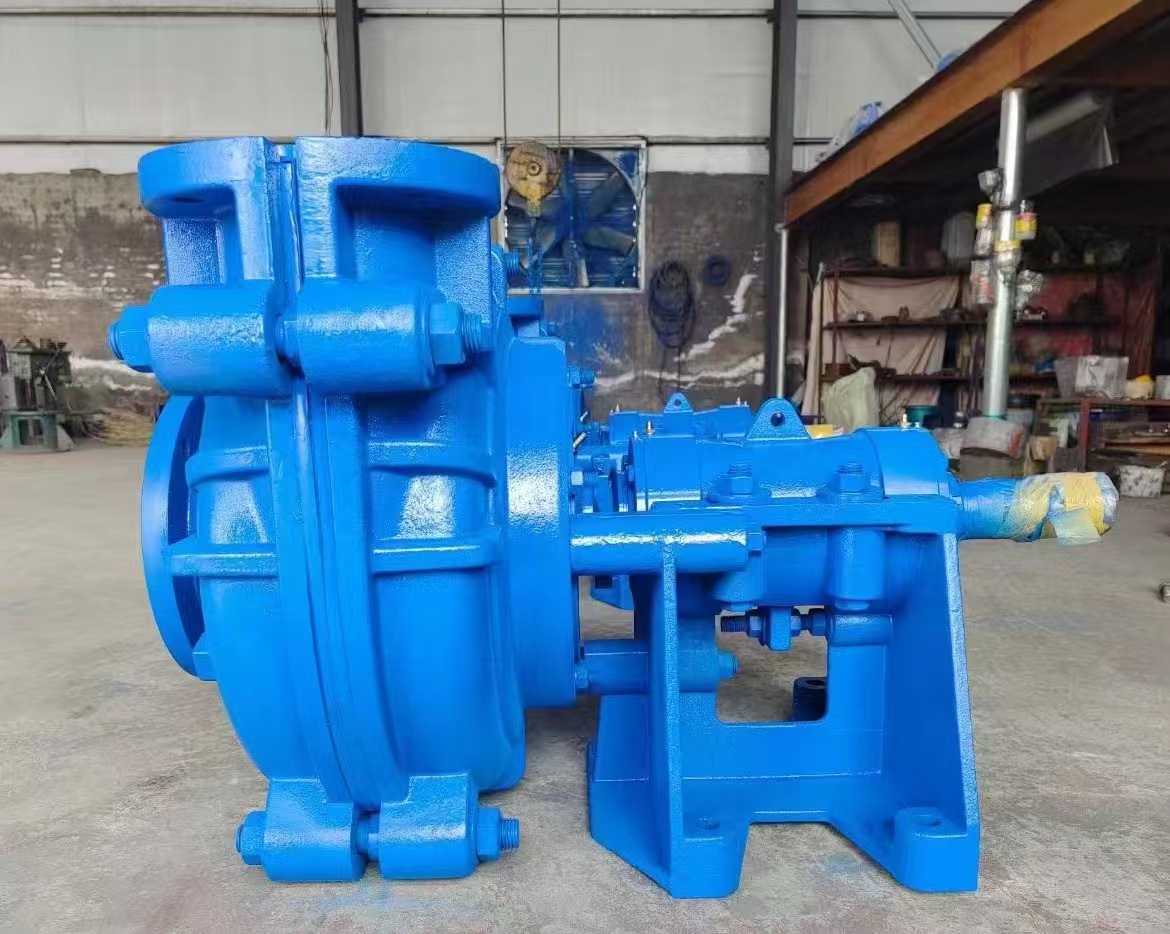

一、概述I. OverviewPH—2型泵系單級單吸離心式襯膠泵，可輸送各類不含有尖角的圓體顆粒的礦漿。輸送礦漿****濃度不超過65%（重量計），溫度不得超過60℃。專用于輸送有腐蝕性礦漿。Pump model PH-2, as a single stage single suction centrifugal rubber lined pump, can be used to convey
PH—2型泵系單級單吸離心式襯膠泵，可輸送各類不含有尖角的圓體顆粒的礦漿。輸送礦漿****濃度不超過65%（重量計），溫度不得超過60℃。專用于輸送有腐蝕性礦漿。
Pump model PH-2, as a single stage single suction centrifugal rubber lined pump, can be used to convey various ore pulps with round particles without sharp angles, of which the concentration does not exceed 65% (in weight) and the temperature shall not exceed 60℃. This pump is particular ideal for conveyance of corrosive pulp.
根據用途不同，泵軸分別用優質碳素鋼、鎳鉻鋼制成，護套分別為耐磨橡膠、耐磨耐酸橡膠與鋼板合制制而成，葉輪為鑄鋼制骨架，分別外襯耐磨橡膠、耐磨耐酸橡膠制成，泵的旋轉方向，從傳動方向看為逆時針旋轉。
Depending on the purposes, pump spindle is made of quality carbon steel and nickel-chrome steel; the sheath is made of abrasive rubber, wear resistant and acid-resisting rubber and steel plate; impeller is provided with a steel frame externally lined with abrasive rubber and abrasion-proof and acid-resisting rubber. Viewed from the drive, the pump rotates counterclockwise.
1. pump body 2. pump cover 3. impeller 4. spindle 5. front sheath 6. rear sheath.
7. pedestal 8. pedestal cap 9. auxiliary impeller 10. gland box 11. support
Installation dimensions of horizontal sand pump model
| 砂泵型號 Sand Pump Model | 電機功率 Motor Power | A | B | C | D | E | L1 | L2 | L3 | H1 | H2 | H3 | N | h | n-d | e |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PH-2 | 11kw 18.5kw | 600 | 550 | 919 | 610 | 890 | 860 | 260 | 400 | 443 | 243 | 157 | 40 | 4-Ф27 | 270 |
| 砂泵 型號 Pump Model | 三角皮帶 V-belt | 皮帶輪 Pulley | 進口法蘭 Inlet flange | 出口法蘭 Outlet flange | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 型號 model | 根數Root number | D1×B1 | D2×B2 | a1 | b1 | c1 | n1-d1 | a2 | b2 | c2 | n2-d2 | |
| PH-2 | c | 4 | Ф267×112 | Ф334×112 | Ф100 | Ф180 | Ф215 | 4-Ф18 | Ф50 | Ф130 | Ф160 | 4-Ф19 |
| 型 號model | 流量 Flow | 揚 程 Head | 轉 速 Speed | 允許配帶****功率 Equipped with the maximum power allowed | 效率 Efficiency | 葉輪Impeller | 泵重Pump weight | ||
|---|---|---|---|---|---|---|---|---|---|
| Q | H | N | 軸功率 | 電機功率 | ㎜ | Kg | |||
| m3/h | L/S | m | r/min | kw | % | 195 | 127 | ||
| PH-2 | 12 | 3.33 | 14 | 1430 | 1.2 | 3 | 38 | ||
| 15 | 4.17 | 13 | 1.3 | 40 | |||||
| 18 | 5 | 11.5 | 1.4 | 40 | |||||
