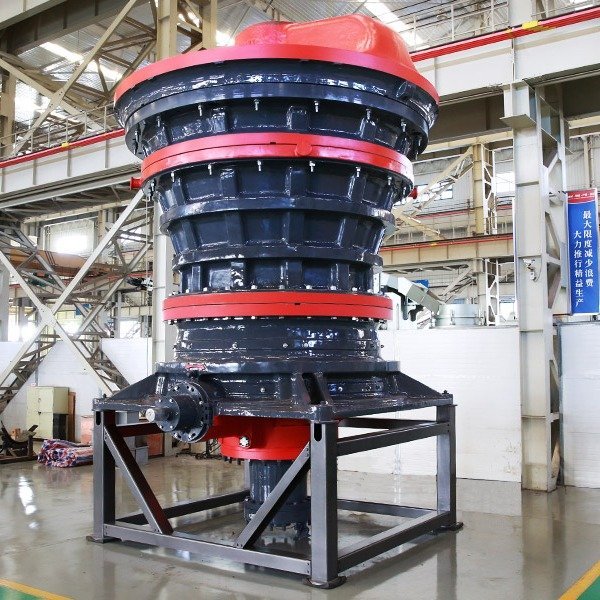

PXZ（重型）、PXQ（輕型）和PXF型旋回破碎機 Gyratory Crusher
旋回破碎機是冶金、建材、化工和水電部門用于粗碎礦石或巖石的主要設備之一，具有破碎比大、生產能力高、產品粒度均勻等特點。
Gyratory crusher is one of the main types of equipment used by metallurgy, building material, chemical, as well as water and power department to coarsely crush ores. It has characteristics such as big crushing ratio, high productive capacity, and uniform particle size of crushed products.
我廠設計制造旋回破碎機已有十多年的歷史，其產品從PXZ0506至PXZ1623已形成系列。產品規格齊全、設計先進、性能可靠、工作平穩、能耗低。深受國內外用戶的歡迎。
Our factory has been engaged in the design and production of crushers for more than ten years. We have now manufactured a series of products (from PXZ0506 to PXZ1623). Our products are complete in specification, advanced in design, reliable in performance, smooth in operation, and low in energy consumption. They are well received by users at home and abroad.
我廠生產的旋回破碎機有PXZ（重型）、PXQ（輕型）和PXF（引進）三個系列，其中PXZ系列用于破碎中等或中等以上硬度的各種物料；PXQ系列用于破碎中等或中等以下硬度的各種物料；PXF系列用于大型露天礦山和選礦廠。
Our factory manufactures three series of gyratory crushers. They are PXZ (heavy-duty), PXQ (light-duty), and PXF (introduced). PXZ crushers are used to crush all kinds of materials with medium hardness or above; PXQ crushers are used to crush all kinds of materials with medium hardness or below; and PXF crushers are used in large open-pit mines and ore dressing plants.
PXZ系列旋回破碎機性能參數表
| 型號規格 Model | 給礦口尺寸 | 排礦口尺寸 | ****給礦尺寸 | 排礦口調整范圍 | 處理能力 |
| Feed size | Capacity | ||||
| mm | mm | mm | mm | t/h | |
| PXZ 0506 | 500 | 60 | 420 | 60～75 | 140～170 |
| PXZ 0710 | 700 | 100 | 580 | 100～130 | 310～400 |
| PXZ 0909 | 900 | 90 | 750 | 90～120 | 380～510 |
| PXZ 0913 | 130 | 130～160 | 625～770 | ||
| PXZ 0917 | 170 | 170～190 | 815～910 | ||
| PXZ 1216 | 1200 | 160 | 1000 | 160～190 | 1250～1480 |
| PXZ 1221 | 210 | 210～230 | 1560～1720 | ||
| PXZ 1417 | 1400 | 170 | 1200 | 170～200 | 1750～2060 |
| PXZ 1422 | 220 | 210～230 | 2160～2370 | ||
| PXZ 1618 | 1600 | 180 | 1350 | 180～210 | 2400～2800 |
| PXZ 1623 | 230 | 210～240 | 2800～3200 |
PXQ系列旋回破碎機性能參數表
| 型號規格 | 給礦口尺寸 | 排礦口尺寸 | ****給礦尺寸 | 排礦口調整范圍 | 處理能力 |
| mm | mm | mm | mm | t/h | |
| PXQ 0710 | 700 | 100 | 580 | 100～120 | 200～240 |
| PXQ 0913 | 900 | 130 | 750 | 130～150 | 350～400 |
| PXQ 1215 | 1200 | 150 | 1000 | 150～170 | 720～815 |
PXF系列旋回破碎機性能參數表（表1）
| 型號規格 | 給礦口尺寸 | 排礦口尺寸 | ****給礦尺寸 | 處理能力 | 破碎圓錐底部直徑 |
| mm | mm | mm | t/h | mm | |
| PXF 5474 | 1372(54”) | 152 | 1150 | 1740 | 1880(74”) |
| PXF 5484 | 203 | 2500 | 2134(84”) | ||
| PXF 6089 | 1524(60”) | 178 | 1300 | 3000 | 2260(89”) |
| PXF 60110 | 4000 | 2794(110”) | |||
| PXF 7293 | 1829(72”) | 178 | 1550 | 2620 | 2362(93”) |
PXF系列旋回破碎機性能參數表（表2）
| 型號規格 | 主 電 機 | 潤滑站規格 | 冷卻水耗量 | |||
| 型號 | 功率 | 轉速 | 電壓 | |||
| KW | r/min | KV | l/min | m3 /h | ||
| PXF 5474 | YR400-12/1180 | 400 | 490 | 6 | 250 | 22.5 |
| PXF 5484 | YR500-12/1180 | 500 | ||||
| PXF 6089 | YR118/46-12 | 500 | 190 | 400 | 23.5 | |
| PXF 60110 | YR500-12 | 355×2 | ||||
| PXF 7293 | YR500-20/1730 | 500 | 295 | 400 | 23.5 | |
