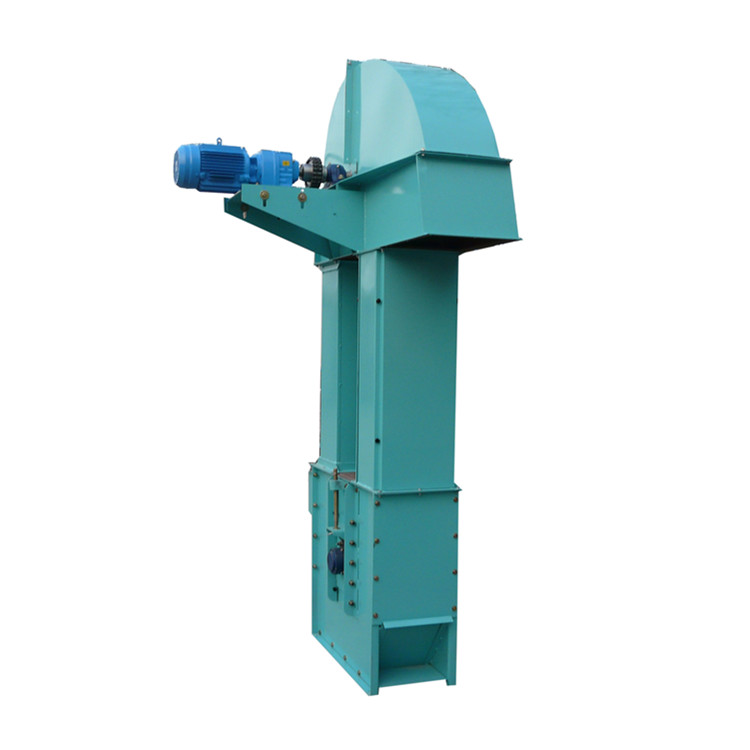

TZD型重力膠帶斗式提升機 Heavy belt bucket elevator
| 型號規格 | 寬度 | 頭部滾筒直徑 | 尾部滾筒直徑 | 帶速 | 頭軸轉速 | 鋼制料斗 | 塑料料斗 | ||||
| 斗容 | 斗距 | 輸送量 | 斗容 | 斗距 | 輸送量 | ||||||
| mm | mm | mm | m/s | r/min | L | mm | t/h | L | mm | t/h | |
| TZD200 | 200 | 630 | 500 | 1.76 | 53.5 | 1.21 | 300 | 10 | 1.21 | 300 | 10 |
| 176 | 53.5 | 150 | 20 | 150 | 20 | ||||||
| 2 | 60 | 125 | 30 | 125 | 30 | ||||||
| 2.75 | 83.3 | 105 | 50 | 105 | 50 | ||||||
| TZD250 | 250 | 630 | 500 | 1.76 | 53.3 | 2.35 | 150 | 30 | 2.35 | 150 | 30 |
| 1.76 | 53.3 | 125 | 50 | 125 | 50 | ||||||
| 2.42 | 73.5 | 125 | 80 | 125 | 80 | ||||||
| 3 | 91.9 | 125 | 100 | 125 | 100 | ||||||
| TZD300 | 300 | 710 | 565 | 1.93 | 52.5 | 6 | 215 | 80 | 3.1 | 145 | 50 |
| 2.2 | 60 | 215 | 100 | 145 | 80 | ||||||
| 3.05 | 82.2 | 215 | 150 | 145 | 100 | ||||||
| TZD400 | 400 | 710 | 565 | 1.93 | 52.5 | 8.4 | 215 | 100 | 6.1 | 195 | 80 |
| 2.2 | 60 | 215 | 150 | 195 | 100 | ||||||
| 3.05 | 82.2 | 200 | 150 | ||||||||
| TZD500 | 500 | 800 | 655 | 1.97 | 47 | 10.9 | 215 | 150 | 11.5 | 255 | 100 |
| 2.2 | 52.8 | 200 | 150 | ||||||||
| 3.1 | 74 | 300 | 200 | ||||||||
| TZD650 | 650 | 800 | 655 | 2.2 | 52.8 | 2×6 | 215 | 200 | 2×3.1 | 145 | 150 |
| 2.76 | 66 | 300 | 200 | ||||||||
| 3.87 | 92.5 | 400 | 300 | ||||||||
| TZD800 | 800 | 1140 | 930 | 2.5 | 41.6 | 2×8.4 | 215 | 400 | 2×6.1 | 195 | 200 |
| 3.15 | 52.8 | 500 | 300 | ||||||||
| 3.94 | 66 | 600 | 400 | ||||||||
| TZD1000 | 1000 | 1140 | 930 | 2.5 | 41.5 | 2×10.9 | 215 | 500 | 2×11.5 | 255 | 400 |
| 3.15 | 52.8 | 600 | 500 | ||||||||
| 3.94 | 66 | 800 | 600 | ||||||||
